Descripción
| Part number: | C1000202 |
| Model: | M4530 KV518 Y-S |
| rpm/V: | 518KV |
| Stator / Poles: | 12N / 10P |
| Stator Diameter / Thickness: | Ø45,5mm / 30mm |
| Motor Wind: | 4+4 Delta thick wire |
| Motor Resistance: | 8,5mΩ |
| Max Current: | 125A |
| Max Peak Current: | 200A |
| Max Continuous Power: | 6000W |
| Max Peak Power: | 9600W |

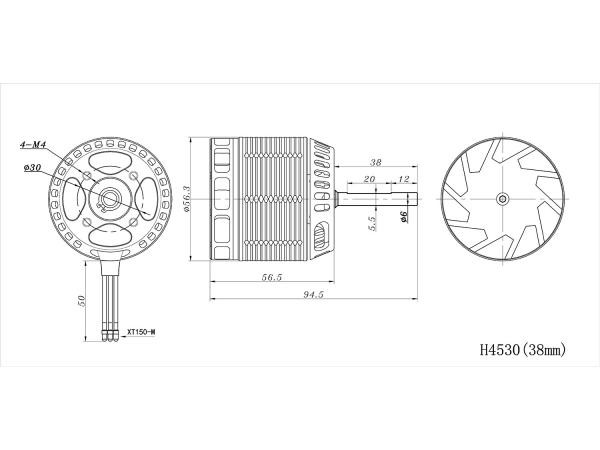

| Motor Diameter: | Ø56.3mm x 57mm |
| Shaft Diameter: | Ø6 x 38mm |
| Mounting Hole and Screws: | 4 x Ø30mm M4 |
| Max Lipo Cell: | 12S |
| Motor Weight: | 543g |
