Descripción
Chassis:
- Sturdy graphite main frame unit.
- All C/F parts are made from 100% carbon.
- CNC machined Delrin 117 tooth helical main gear
- High quality one way bearing Made in Germany
- High quality one way bearing hub, full ball bearings
- Heavy duty, high quality front tail drive gears Made in Germany
- High precise two-piece clutch bell with double ball bearing support
- Optional gear ratios
- True T6-6061 CNC machined aluminum components
- CNC machined aluminum triple main shaft bearing blocks
- Direct controlled 120 (degree) CCPM
- CNC machined aluminum boom clamps
- CNC machined aluminum engine mount
- Full ball bearings throughout
- High quality landing gear struts
Rotor Head:
- Full ball bearings
- Heavy duty linkages
- 9mm head axle made from special high quality steel
- CNC machined aluminum swashplate
- CNC machined main rotor grips
- CNC machined main rotor head
- High quality swashplate heim ball/ball bearing
- High precise swash plate follower arms with 4 ball bearings each
Tail Rotor:
- Full ball/thrust bearings
- Tail Rotor hub made from special high quality steel
- Graphite tail fin
- CNC aluminum open gearbox
- CNC machined tail gears made from aluminum and POM
- Aluminum 22mm tail boom
- Precise running torque tube w. 3 ball bearings
- Hardened tail rotor output shaft
- High precise tail slider
- Carbon/Aluminum boom supports
- Carbon Tail Control Rod
Air Filter:
- High Flow Air Cleaner X-cell
Canopy:
- High Visibility Painted Epoxy-Glass Canopy

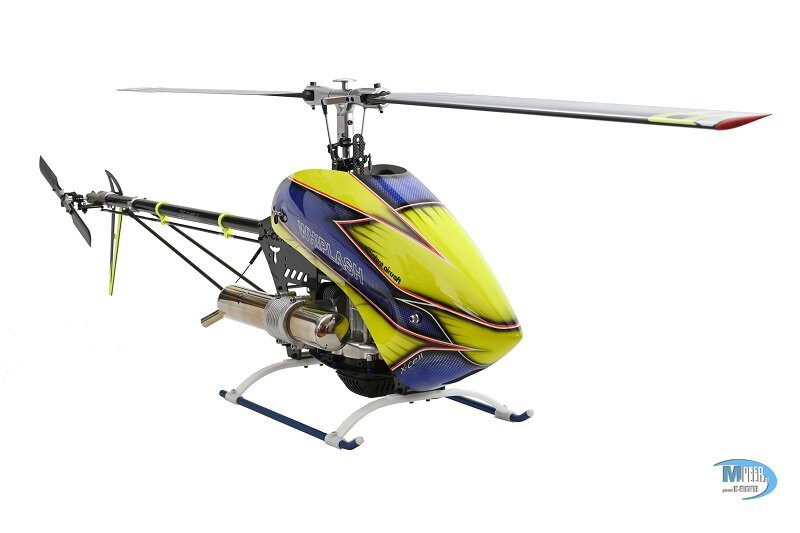

The Whiplash-G II kit includes the helicopter kit and a special designed air-filter for the engine.
The kit does NOT INCLUDE: Engine, Muffler, Rotorblades, Servos, FBL System, Battery, Wiring, Switch, any other accessories or any other components which are maybe seen at the pictures of the helicopter.
