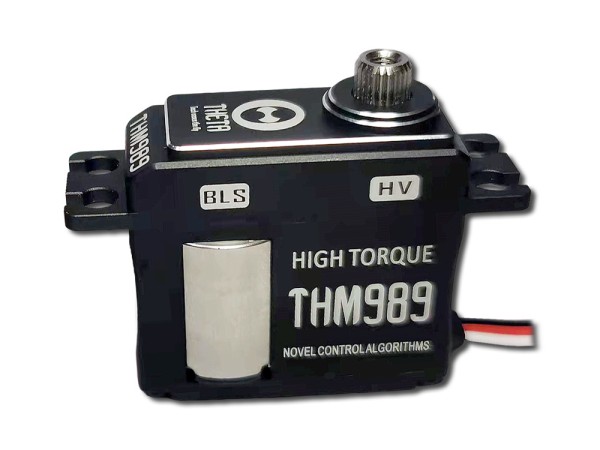

THETA THM989 Brushless HV Servo
Extremely powerful Brushless HV servo in mini 35mm size.
The range of application of the servo is versatile from helicopter swashplate servo in the 500 to 600 size, in function models, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.
Specifications:
| Motor | Brushless |
| Operating Voltage | 5V bis 8,4V |
| Speed at 5V | 0,100 (sec/60°) |
| Speed at 6V | 0,090 (sec/60°) |
| Speed at 7,4V | 0,080 (sec/60°) |
| Speed at 8,4V | 0,070 (sec/60°) |
| Torque at 5V | 15 (kg/cm) |
| Torque at 6V | 18 (kg/cm) |
| Torque at 7,4V | 21 (kg/cm) |
| Torque at 8,4V | 23 (kg/cm) |
| Weight | 54g |
| Dimensions (mm) | 35x15x34mm |
| Neutral pulse (factory-made) | 1520µs |
| Working Frequency | 50-400Hz |
| Output toothing | 25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.) |
Accessories:
1x Servo THM989
4x Servo horn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
