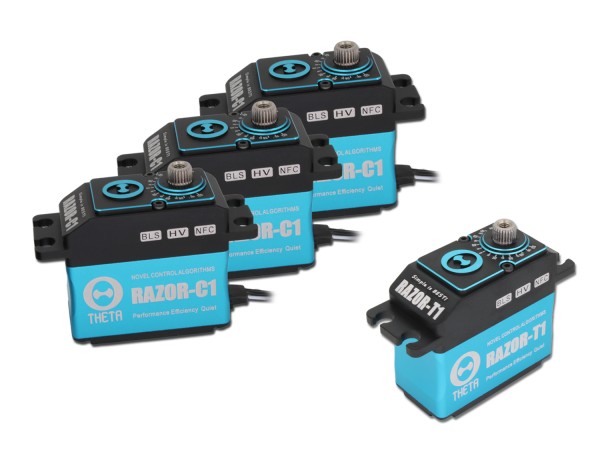

THETA Helicopter Set 3x RAZOR-C1 for swashplate and the RAZOR-T1 for tail / Brushless HV Servo with NFC
NFC programmable brushless HV servo in the 40 mm standard size.
The field of application of the servo set is for helicopters from 550 to 800+ size.
Specifications RAZOR-C1 swashplate servo:
| Motor | Brushless |
| Operating Voltage | 5V bis 8,4V |
| Speed at 5V | 0,108 (sec/60°) |
| Speed at 6V | 0,084 (sec/60°) |
| Speed at 7,4V | 0,071 (sec/60°) |
| Speed at 8,4V | 0,060 (sec/60°) |
| Torque at 5V | 23 (kg/cm) |
| Torque at 6V | 27 (kg/cm) |
| Torque at 7,4V | 34 (kg/cm) |
| Torque at 8,4V | 36 (kg/cm) |
| Speed at 5V | 0,102 (sec/60°) |
| Speed at 6V | 0,079 (sec/60°) |
| Speed at 7,4V | 0,067 (sec/60°) |
| Speed at 8,4V | 0,056 (sec/60°) |
| Torque at 5V | 32 (kg/cm) |
| Torque at 6V | 37 (kg/cm) |
| Torque at 7,4V | 44 (kg/cm) |
| Torque at 8,4V | 48 (kg/cm) |
| Weight | 73g |
| Dimensions (mm) | 40x20x38mm |
| Neutral pulse (factory-made) | 1520µs |
| Neutral pulse (optional per App) | 760µs |
| Maximale Working Frequency | 50-400Hz |
| Output toothing | 25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.) |
Specifications RAZOR-T1 Tailservo:
| Motor | Brushless |
| Operating Voltage | 5V bis 8,4V |
| Speed at 5V | 0,062 (sec/60°) |
| Speed at 6V | 0,054 (sec/60°) |
| Speed at 7,4V | 0,047 (sec/60°) |
| Speed at 8,4V | 0,042 (sec/60°) |
| Torque at 5V | 17 (kg/cm) |
| Torque at 6V | 18 (kg/cm) |
| Torque at 7,4V | 19 (kg/cm) |
| Torque at 8,4V | 20 (kg/cm) |
| Speed at 5V | 0,058 (sec/60°) |
| Speed at 6V | 0,051 (sec/60°) |
| Speed at 7,4V | 0,044 (sec/60°) |
| Speed at 8,4V | 0,039 (sec/60°) |
| Torque at 5V | 20 (kg/cm) |
| Torque at 6V | 24 (kg/cm) |
| Torque at 7,4V | 27 (kg/cm) |
| Torque at 8,4V | 30 (kg/cm) |
| Weight | 73g |
| Dimensions (mm) | 40x20x38mm |
| Neutral pulse (factory-made) | 760µs |
| Neutral pulse (optional per App) | 1520µs |
| Working Frequency | 50-400Hz |
| Output toothing | 25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.) |
Accessories:
3x Servo RAZOR-C1
1x Servo RAZOR-T1
