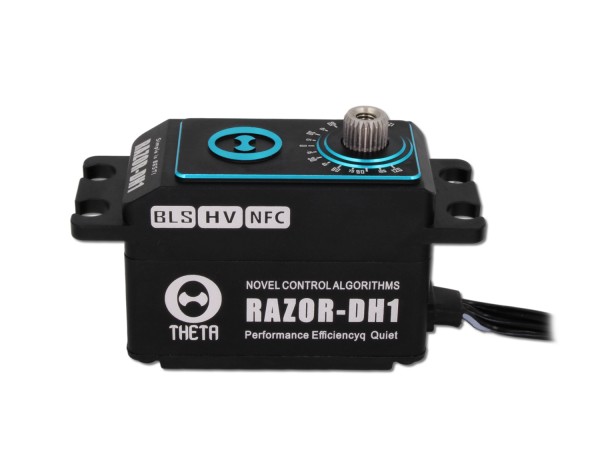

THETA RAZOR-DH1 Low-Profile Brushless HV Servo with NFC

NFC programmable brushless HV servo in the 40 mm low-profile size.
The application range of the servo is versatile from helicopter swashplate servo from the 550 up to the 800 size, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.
Due to the SANWA SSR compatibility, the advantages of Sanwa Super Response transmission can be used in the RC car sector.

Specifications:

NFC programmable via Android mobile phone app
Motor	Brushless
Operating Voltage	5V bis 8,4V

with max. 3A current consumption
Speed at 5V	0,108 (sec/60°)
Speed at 6V	0,090 (secS/60°)
Speed at 7,4V	0,080 (sec/60°)
Speed at 8,4V	0,070 (sec/60°)

Torque at 5V	24 (kg/cm)
Torque at 6V	26 (kg/cm)
Torque at 7,4V	28 (kg/cm)
Torque at 8,4V	30 (kg/cm)

with max. 5A current consumption
Speed at 5V	0,092 (sec/60°)
Speed at 6V	0,081 (sec/60°)
Speed at 7,4V	0,072 (sec/60°)
Speed at 8,4V	0,063 (sec/60°)

Torque at 5V	30 (kg/cm)
Torque at 6V	34 (kg/cm)
Torque at 7,4V	37 (kg/cm)
Torque at 8,4V	40 (kg/cm)

Weight	60g
Dimensions (mm)	41×20,5×29,5mm
Neutral pulse (factory-made)	1520µs
Neutral pulse (optional per App)	760µs
Working Frequency	50-400Hz
Output toothing	25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.)
