Descripción

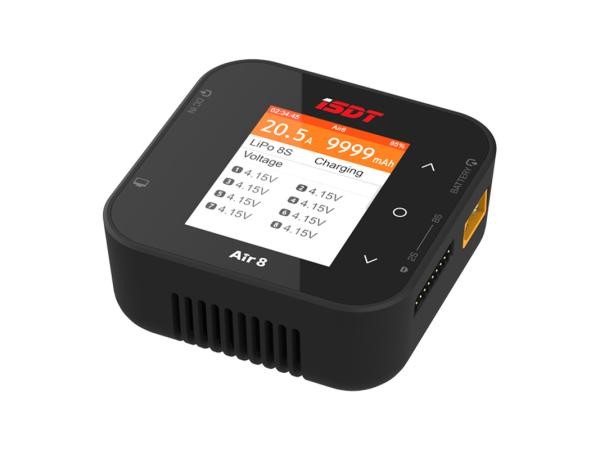

The new Air8 charger from iSDT is the successor of the Q8 and offers 500W charging power at a weight of only 169 grams and almost tiny dimensions of 80x80x34 mm. It can charge 1-8s LiPo or LiHv batteries with max. 20A. The new scOS 2.0 offers improved system stability and new functions such as the Dark Mode (will be delivered later via update), a DC Power Mode and a mode to bring defective batteries to 0V.
The Air 8 supports the Batt Air function, the necessary Batt Air plugs are available separately!
The IPS display ensures very good readability even in sunlight.
Technical Details:
| Input voltage: | 10-34V – DC voltage |
| Input current max: | 20A |
| Output voltage: | 1-34V |
| Charging power: | 500W (from 27V input voltage) |
| Discharge power: | 15W |
| Charging current: | 0,1-20A |
| Discharge current | 0,1-1,5A |
| Balancer current: | 1500mA/cell |
| Adjustable end-of-charge voltage: | up to 4.35V for LiHV |
| Number of cells – battery type: | 1-8 LiXX, 1-8 LiHV & ULiHv 1-16 NiXX, 1-12 Pb |
| Weight: | 169 g |
| Dimensions: | 80x80x34mm |
| Colour display: | 2.4″ IPS LCD, gut ablesbar auch bei Tageslicht und schrägem Blickwinkel bis 178° |
| updateable via USB | |
| Multilingual menu navigation, German can be selected. |
